About 70% of U.S. homes constructed before 1980 use copper in part of their water supply system. This highlights the enduring importance of copper pipe fittings in plumbing systems. In this guide, we cover the essential copper fittings used throughout plumbing systems. These fittings are used to join, redirect, and control the flow of water, gas, and refrigerant. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
This webpage is about 5 8 Id Tube
Contractors and DIYers prefer copper for its durability, heat tolerance, and water quality benefits. Copper fittings can last for decades when they are installed correctly. This makes them a cost-effective choice for many projects.
In this article, we will explain how to identify fittings by both function and size. We will also compare soldered connections with mechanical ones. You will also learn how to locate compatible parts from reliable suppliers such as Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: An Overview And Why Choose Copper
For both residential and commercial plumbing, copper pipe fittings remain a preferred option. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. Below is an overview of why plumbers and contractors continue to choose copper for repairs and new construction.
Benefits of copper
Copper is known for its durability and malleability, allowing fittings like elbows and tees to be shaped easily without cracking. Its ability to withstand high temperatures makes it perfect for hot water supply and boiler loops. Copper also has bacteriostatic properties, ensuring safer potable water compared to some plastics. It can be connected using solder, press systems, compression methods, or push-fit solutions, giving installers more flexibility.
Longevity And Corrosion Resistance
Copper tubing often lasts from 70 to 80 years when it is installed correctly. Its surface oxidation creates a protective patina that slows deeper corrosion and supports long-term durability. To avoid pinhole leaks and premature failure, you need quality materials, proper fluxing, and clean joints. Routine inspections and the use of correct fittings can further extend service life in supply lines as well as HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper surpasses many alternatives in hot-water systems, refrigeration lines, and high-pressure applications. In HVAC and refrigeration, pipe 5 8 and copper tube 5/8 sizes are commonly used for refrigerant circuits, ensuring reliable performance under pressure and heat. Compared to PVC or PEX, copper fittings can handle higher temperatures and maintain rigidity under stress. Copper is also less prone to impact damage than multilayer or composite pipes, and it has a proven record in older systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | Strong tensile performance and wear resistance | Hot-water supply lines and boiler loops |
| Heat tolerance | Handles high temperatures without softening | Water heaters and HVAC lines |
| Corrosion behavior | Forms protective patina that slows degradation | Long supply runs in homes |
| Connection methods | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Typical sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits, tight commercial runs |

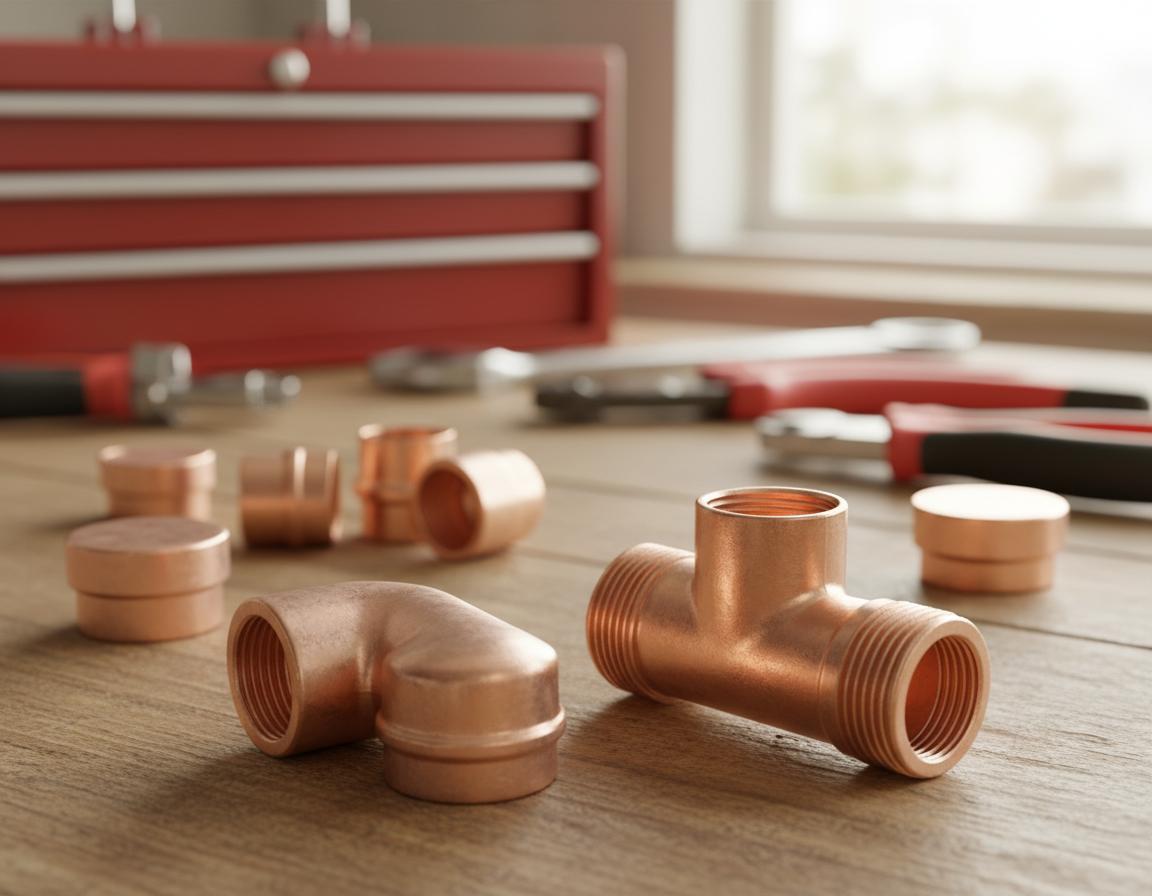

Common Types Of Copper Pipe Fittings For Supply Lines
Choosing the right copper fittings is key to a successful project. This guide covers essential fittings for water supply lines, including those for direction changes and service access. Remember to consider pipe size, material compatibility, and connection style when planning.
Elbows, Tees, And Crosses: Direction Changes And Branching
Elbows are used at 90°, 45°, and 22.5° angles to direct flow around corners. They are especially useful when you need to route around obstacles or follow wall paths. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Cross fittings connect four directions and are ideal where system lines meet.
You can find these fittings in multiple connection styles, such as sweat/soldered, press, and compression. Select the connection method that works best with your copper pipe connectors and the installer’s skill set.
Couplings, Adapters, And Unions For Joining And Maintenance
Copper couplings connect two pipe lengths of the same diameter. Reducing couplings are used when different sizes must be joined. Adapters are used to convert between materials and thread styles, such as copper-to-brass or copper-to-PEX.
Unions allow for quick section separation for repairs or equipment service. They are ideal in places where a valve or fixture must be removed periodically. To prevent leaks, always ensure that unions and adapters match the pipe OD or nominal size.
Caps, Plugs, And Clean-Outs For Access And Sealing
Caps seal an end of a line, while plugs thread into fittings to seal branches. Both are used for pressure testing and temporary terminations. Clean-outs provide service access to drain lines for clearing blockages and maintenance.
Choose caps, plugs, and clean-outs that match the system pressure and material. Make sure the fitting size reference—nominal, OD, or ID—is correct, since this is especially important for 5 8 copper fittings and similar parts.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. This prevents fit issues and simplifies maintenance.
Compression And Push-To-Connect Copper Fittings
Compression and push-to-connect fittings simplify copper plumbing and make many jobs faster and safer. These fittings are especially useful when a torch is not practical or when a fast repair is required. Below, we explain how each system works, where it is best used, and the key installation tips for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
Compression fittings use a nut and a ferrule to create a seal. As the nut is tightened, the ferrule compresses against the tube and grips the copper. This creates a leak-resistant joint without using heat. They are commonly used on supply lines and for repairs where a torch cannot be used easily.
These joints are effective on various sizes, including 5 8 copper pipe fittings. When properly installed, they can be disassembled later, which makes them ideal for accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Push-to-connect copper fittings, often called quick-connect fittings, let you insert a deburred tube into the fitting body until it clicks. No solder, crimping, or special tools are required. This simplicity makes them a favorite among DIYers and professionals working in confined spaces.
Common sizes, including 5/8 copper tube, are supported by these fittings. Many manufacturers publish pressure and temperature ratings for them. Reliable results depend on matching the fitting to the tubing type and following the manufacturer’s depth guidelines.
Why These Fittings Outperform Solder In Some Jobs
With compression and push-fit copper fittings, there is no need for a torch, flux, or open flame. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They are also time-saving options for emergency repairs and installations in tight spaces.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Always check ratings before using quick-connect fittings on hot-water or high-pressure lines. When used correctly, these fittings offer a flexible, safe alternative to soldering in many plumbing applications.
Sweat And Soldered Fittings For Copper Pipe
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. Brazing, on the other hand, employs higher heat and a different filler that melts above 840°F. It is commonly used for HVAC and refrigeration joints. When done correctly, both methods create durable, long-lasting joints.
Technique Overview
In sweat copper fittings, solder fills the gap between the fitting and the copper tube. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The choice between these methods depends on the system’s requirements and local regulations.
Tools And Safety Gear
Key tools include a tube cutter, deburring tool, emery cloth or wire brush, flux, solder or brazing rod, and a torch. For soldering, propane is commonly used, while MAPP or acetylene is better suited to brazing. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Step-By-Step Soldering Tips
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Use emery cloth or a wire brush to clean both the pipe and fitting until bright copper is visible.
- Apply flux to the cleaned surfaces, assemble the joint, and twist it slightly to spread the flux evenly.
- Heat the fitting evenly with an enveloping flame. For brazing copper pipe, watch for a subtle red tint as temperature climbs.
- Apply solder or brazing rod at the joint, then allow capillary action to draw the filler through the seam.
- Let the joint cool naturally, then remove soot and flux residue with an appropriate cleaner.
When to choose soldered fittings
Opt for copper solder fittings for a permanent, reliable joint in potable water systems and moderate temperatures. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Ensure that work on 5/8 copper tubing or copper tube 5/8 sized lines follows manufacturer and code requirements for pressure compatibility.
Practical considerations
Proper technique is essential if you want to avoid porosity and cold joints. Inspect every joint to confirm full solder coverage, and pressure-test the system before it is insulated or concealed. Sweat copper fittings remain a standard choice for many plumbing jobs, while brazing copper pipe is ideal in demanding HVAC and refrigeration applications where durability matters most.
Specialty Copper Fittings Used In Refrigeration And HVAC
Refrigeration and HVAC systems need precise tubing and fittings to move refrigerant safely. Technicians choose materials and connection types based on pressure, service access, and code requirements. Understanding common fitting styles and sizes helps prevent leaks and future service problems.
5/8 copper pipe is frequently used in liquid and suction lines for residential and light commercial systems. It’s important to confirm whether the spec refers to outside diameter (OD) or nominal size before ordering parts.
5 8 copper tube needs to match fittings that are sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. Use manufacturer compatibility charts when selecting copper pipe fittings refrigeration components.
5/8 Copper Pipe And 5/8 Refrigeration Tubing Uses
For refrigerant lines, precise bends and consistent wall thickness are essential. A section of 5 8 copper refrigeration tubing works well for liquid lines and smaller suction runs. Service valves, filter driers, and meters are often designed around the 5/8 OD copper tubing size.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
A flare fitting seals by compressing the flared end of a tube under a flare nut. Technicians use flare fittings where serviceability matters, such as access panels and gauges. Flare joints are convenient in the field because they can be hand-tightened.
Bite-type fittings rely on a ferrule that bites into the wall of the tube when tightened. When flaring is difficult or space is tight, installers frequently choose bite-type fittings. They provide quick assembly and strong vibration resistance in mobile applications.
Brazed fittings create metallurgical joints with strong, leak-resistant bonds. For HVAC systems exposed to high pressures or elevated temperatures, brazed connections are often required. For certain refrigerants and high-pressure circuits, codes and manufacturers may require brazing.
Sizing Notes For 5 8 Copper OD, ID, And Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. A 5/8 id pipe has a smaller OD than tubing labeled 5/8 OD. Checking both ID and OD helps prevent fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Matching fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation notes | Check flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure Suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class and is often lower than refrigeration-rated tubing |
When selecting parts, match the fitting specification to the tubing OD and choose copper pipe fittings refrigeration products that state compatibility with 5/8 od copper tubing. For field repairs, it is wise to keep flare fittings and bite-type fittings on hand. Where pressure requirements or code rules demand permanent high-strength joints, use brazed fittings.
Choosing The Right Copper Fitting: Sizing, Material, And Code Considerations
Choosing the right copper fitting involves precise measurements and understanding performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. That step is critical if you want to avoid leaks and make sure the fitting matches the system.
Many refrigeration and HVAC parts are sized by outside diameter. For instance, 5 8 copper pipe od is common in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. You should always check the manufacturer’s notes on 5/8 in copper pipe sizing before purchasing.
When matching fittings to pipe, verify if the tubing is described as 5 8 id tube or 5 8 od tubing. Compression, sweat, flare, and brazed fittings all require specific preparation and clearances. Select the fitting method that aligns with the application and pressure level.
The system’s temperature and pressure determine the best joint type and material. For hot potable water, soldered or press fittings rated for high temperatures are recommended. Flare or brazed joints are well suited to high-pressure refrigerant lines. When copper must connect to other metals, brass adapters are often ideal.
Code requirements at the local level also play a major role. Check local plumbing codes copper fittings requirements before you start any work. In some areas, brazed joints are required for HVAC refrigerant work, or mechanical fittings may be restricted in concealed spaces. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
To select the best copper fittings, purchase from trusted suppliers like Ferguson or Grainger and follow product instructions carefully. If you are unsure, consult a licensed plumber or HVAC technician to verify fit and rating. This approach helps avoid costly rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing type | 5 8 copper pipe od | High-pressure refrigerant applications | Fittings are usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing, nominal | Residential water-supply systems | Check whether the label refers to ID or nominal size |
| Compression fittings | Often marked by tube OD or nominal ID | Retrofit work and quick repairs | Suitable for low-to-moderate pressure; follow torque specifications |
| Sweat or soldered fittings | Usually listed by nominal size | Hot-water systems and durable joints | Requires proper flux, heat, and cleaning for leak-free joints |
| Flare fitting type | 5 8 id tube or 5 8 OD in certain specifications | Refrigeration and fuel lines | Do not mix flare and compression fittings unless they are rated for both |
| Required certifications | NSF/ANSI, UPC | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. That approach will help you choose copper fittings that work well and meet local regulatory requirements.
Installation Tips, Common Mistakes, And Maintenance For Copper Fittings
Preparation is one of the most important steps in avoiding failures. Leaks and rework can be greatly reduced by following basic copper-fitting installation tips. The decisions made during assembly have a major impact on long-term system performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, Deburring, And Cleaning Pipe Ends Before Assembly
Use a proper tube cutter first to make sure the cut is square. Once the pipe is cut, remove burrs and copper shavings from the end and the pipe ID. Use emery cloth or a wire brush to clean the inside of the fittings and the outside of the pipe end. This step is necessary for even flux and solder flow. Without proper prep, capillary action is compromised, leading to leaks.
Proper use of flux, heat, and solder; avoiding cold joints and leaks
Apply flux evenly to both mating surfaces before assembling the joint. Then heat the fitting evenly. When soldering copper pipe, keep the flame moving to ensure uniform heat distribution. Apply solder to the heated seam so capillary action can draw it in. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Using Teflon Tape And Thread Sealants While Avoiding Overtightening
Male threads on threaded copper fittings should receive Teflon tape or a compatible pipe thread sealant. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Overtightening should be avoided because excessive torque can strip threads or crack fittings. For compression fittings, follow the manufacturer’s torque or turn count to avoid crushing ferrules.
Routine Inspection, Leak Prevention, And Fitting Replacement
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. Replace fittings if leaks persist after tightening, if corrosion is visible, or when systems are upgraded to modern standards.
Common errors include skipping cutting, deburring, and cleaning steps, mixing OD and ID sizing conventions, overheating joints during soldering, and ignoring pressure limits set by the manufacturer. To maintain reliable systems, always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions.
Conclusion
Copper pipe fittings are valued in plumbing and HVAC because of their durability, heat tolerance, and long service life. The choice between soldered joints, compression fittings, push-to-connect options, flare connections, or brazed assemblies depends on the job’s specifics. It is critical to match both the size and type of fitting correctly. Be careful with OD versus ID measurements, such as 5/8 sizing, so you do not make fitment errors.
As you select copper fittings, make sure they satisfy local codes, pressure ratings, and material standards. For quality products and support, turn to a trusted wholesale distributor like Installation Parts Supply. They offer compatibility charts and certification details to guide your selection for any plumbing project.
A lasting system depends on effective preparation and installation. Begin by cutting, deburring, and cleaning pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. To maintain a safe, leak-free system, carry out regular inspections and replace worn fittings on time.
